Introduction:

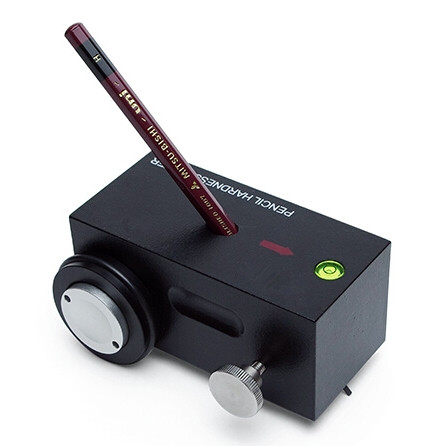

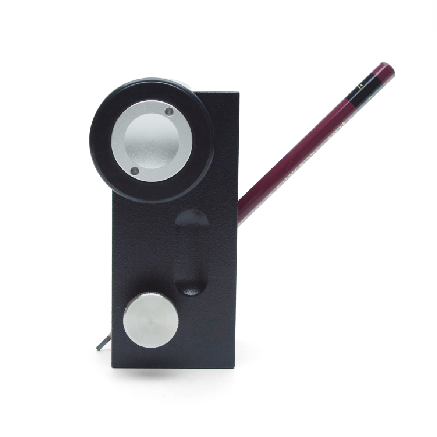

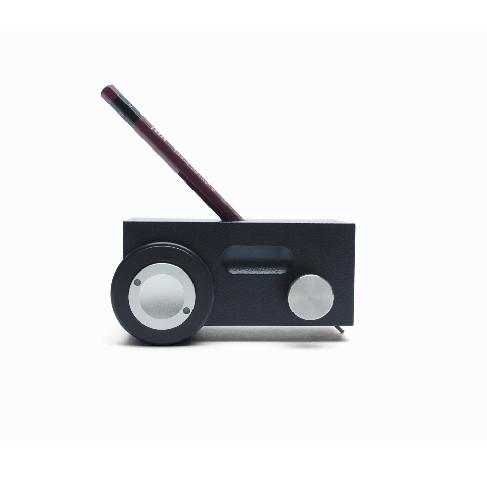

JL1301 Pencil Tester is complied with the requirements of ASTM D3363 and ISO15184 standard, through leaving a superficial trace on the dry coating film with a certain pencil hardness, the surface will be variably damaged by the hardest pencil to evaluate pass/fail or hardness. Recommend to apply on the smooth film surface.Use variety of different hardness pencils,the angle between pencil and the coated surfaceis 45°, scratch on the coated surface under a certain of force, the scratch resistance hardness of the coating is the pencil hardness which just scratched the coating.
Technical Specification:
◆Pressure of Pencil Tip: 1000/750/500g
◆The angle between pencil and film surface is 45°
◆Three points are touched on the tested surface (roller, pencil tip)
◆Scratch Speed: 1 mm/sec
Hardness Class:
◆Hardness Increase
◆Standard pencil：A set of Mitsubishi pencil (14pcs from 6B to 6H)
◆Other brand pencils are available upon request (Option)
Order Information:
| JL 1301/500 Pencil Hardness Tester (500g) |
| JL 1301/750 Pencil Hardness Tester (750g) |
| JL1301/1000 Pencil Hardness Tester (1000g) |
