2608 Glossmeter

类别:
[ssba]
INQUIRY
Content:

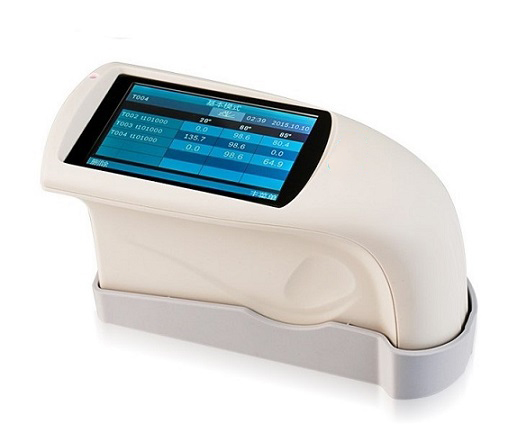

Tri-Angle Glossmeter with 3.5 inch HD touch screen

The 2608 range are easy to use glossmeters which combine high accuracy, repeatability

and reproducibility with functionality making them the most advanced glossmeters on the market.

Features

Small, robust & ergonomic

Repeatable, reproducible & accurate

USB data output

Automatic gauge & tile diagnostics

Standard, auto repeat and scan modes

Differential mode with pass/fail

Standards

ISO 2813, 7668

ASTM D 523, D 2457

DIN 67530

Technical Specifications

Cat.No. 2608
Display 3.5 inch TFT HD touch screen
Long-term calibration with automatic check
Auto range 0-2000 GU; 0-1000 GU; 0-160 GU
Repeatability ±0.2 GU(0-100 GU); ±0.2%(100-2000 GU)
Reproducibility ±0.2 GU(0-100 GU); ±0.2%(100-2000 GU)
Spectral sensitivity CIE 1931 standard observer
Measuring area 10×10 mm; 9×15 mm; 5×36 mm
Measuring time 0.5 seconds/geometry
Continuous actual value, average, min, max
Interface and software USB
Menu guidance English
Auto shut time selectable
Power supply via Adapter
Operating temperature 15-40℃
Relative humidity up to 85%, non-condensing
Dimensions 160×75×90 mm
Weight 0.4 kg

Comes complete with

20° 60° 85° Glossmeter

Holder with integrated calibration tile

Software and USB cable

Operating manual

Power adapter

Carrying case
